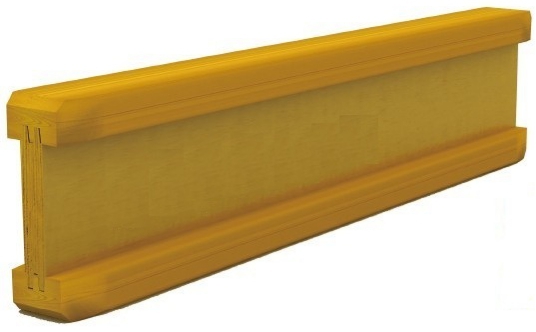

Timber beam H20 is an important part of formwork system. It has a very wide range of application in Construction,Metro, Tunnel, Nuclear Power Station etc.as one of the basic components in more than a half formwork system, maintains the property to be lighter, stronger, safer and more durable in order to achieve better performance for site jobs. According to the requirement, standard holes can be drilled in the two ends of timber beam. We can lengthen the timber beam by end-to-end join. We can also produce timer beams length with customer demand.
| Wood material | Birch |

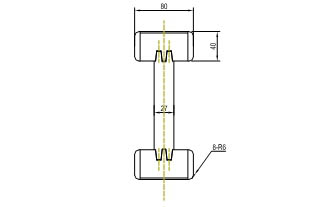

| Width | 200mm + Flange:80mm |
| Weight | 4.80kg/metr |
| Length available | 1.00/1.50/2.00/2.50/3.00/3.50/4.00/4.50/5.00/5.50/6.00/12.00meter |
| Surface finishing | Waterproof yellow painting |
| Packing | Different length loaded differently |
1. Light weight and strong rigidity.
2. Stable in shape due to the highly compressed panels.
3. Water resistant and anti-corrosion treatment allows the beam more durable in site use.
4. Standard size can match well with most Euro formwork systems, universally used all over the world.
At present, we have a large-scale timber beam workshop and a first-class production line with daily output of over 3000m
● High quality
Raw materials imported
● Super performance
Fully automatic finger jointing
● High standard
Manufactured on Production lines
|

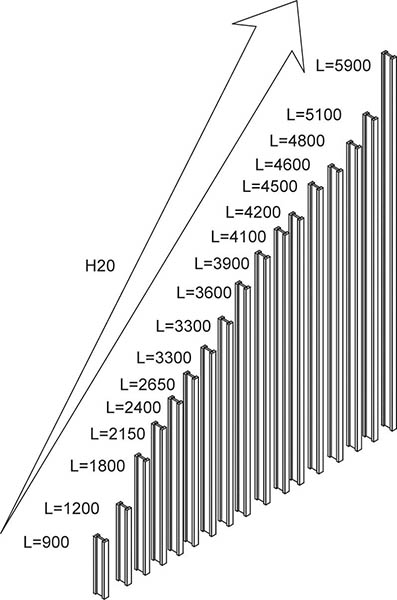

L(mm） |
WT（kg） |
|
|
900 |
4.54 |
|
|
1200 |
6.05 |
|
|
1800 |
9.08 |
|
|
2150 |
10.85 |
|
|
2400 |
12.10 |
|
|
2650 |
13.37 |
|
|
2900 |
14.62 |
|
|
3300 |
16.63 |
|
|
3600 |
18.14 |
|
|
3900 |
19.66 |
|
|
4100 |
20.68 |
|
|
4200 |
21.31 |
|
|
4600 |
23.20 |
|
|
4800 |
24.20 |
|
|
5500 |
27.73 |
|
|
6000 |
30.26 |
|
|
7000 |
35.30 |
| Surface:Yellow water-proof painting Flange:Spruce Web:Poplar plywood | |
| Permitted bending moment | Permitted shearing force | Average weight |
|
5KN*m |
11KN |
4.8-5.2kg/m |
